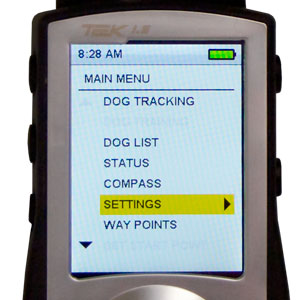

1. On the main menu, select SETTINGS

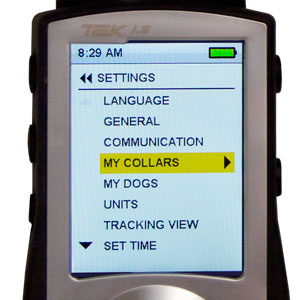

2. Select MY COLLARS

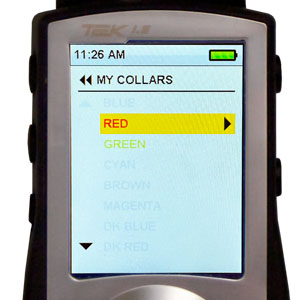

3. Select COLOR where COLOR is the icon color that you want to associate with this collar

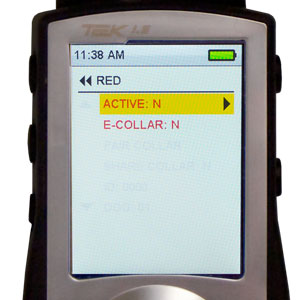

4. Press the right arrow to open the configuration window

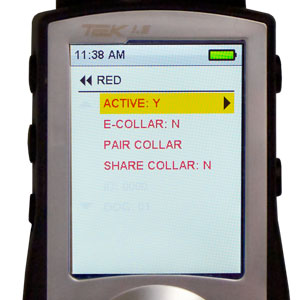

5. To enable the GPS Collar, select and press the right arrow key to set ACTIVE to Y

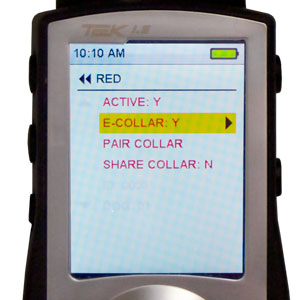

6. To enable the E-Collar Module, select and press the right arrow key to set E-COLLAR to Y

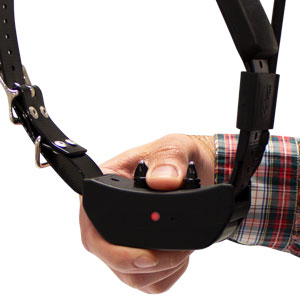

7. With the GPS Collar / GPS Collar + E-Collar Module turned off, press and hold the On/Off button until its indicator light is solid amber. The collar is now in “pairing mode.”

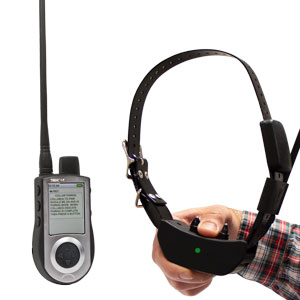

8. On the Handheld Device, select PAIR COLLAR and press the right arrow key to complete the pairing process. The indicator light on the collar will blink 5 times to confirm that it is paired to the Handheld Device.
9. When finished, press BACK to return to the main menu
