These instructions are for matching a replacement Collar Receiver to your SportDOG Transmitter in 1-dog mode.
Please read all steps before starting.

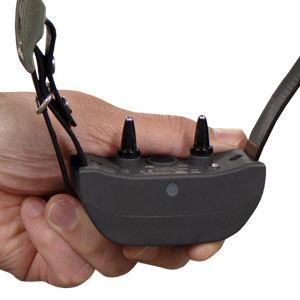

1. Turn the Collar Receiver off.
2. Press and hold the On/Off Button. The Receiver Indicator Light will come on and then turn off after 5 seconds.
NOTE: If the Receiver Indicator Light begins flashing, repeat this step.
3. Release the On/Off Button.
4. Press and hold one of the Side Buttons on the Remote Transmitter until the Receiver Indicator Light flashes 5 times.
5. Once the Receiver Indicator Light has flashed 5 times, the Collar Receiver has been matched and will begin flashing as normal. If the Receiver Indicator Light does not flash, repeat this procedure.
How to Program the Collar for Multi-Dog Operation with the SD-875 / SD-1275:1. Program the Remote Transmitter for multi-dog operation:

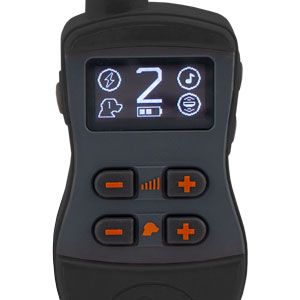

A.Using the Intensity Buttons, set the display to 2.

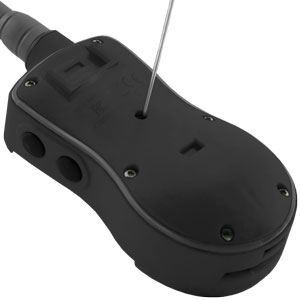

B. Turn the Remote Transmitter over and remove the belt clip (if attached). Using a pen or a paperclip, depress and release the Mode Button.

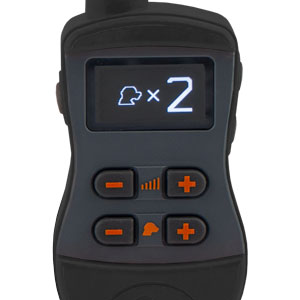

C. Using the Dog Buttons (-/+), select Dog 2. After 5 seconds the icon will blink confirming selection.
2.Program the second Collar Receiver (make sure Dog 2 is selected on the Remote Transmitter)

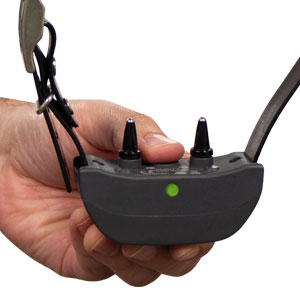

A. Turn the Collar Receiver off.
B. Press and hold the On/Off Button. The Receiver Indicator Light will come on, then turn off after 5 seconds. If the On/Off Button is released too early, the Receiver Indicator Light will begin its normal flashing. If this occurs, start over from A.
C. After the Receiver Indicator Light has turned off, release the On/Off Button.

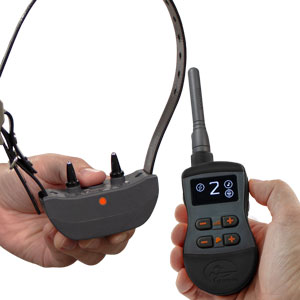

D. Press and hold one of the Side Buttons on the Remote Transmitter until the Receiver Indicator Light flashes 5 times. If the Receiver Indicator Light does not flash 5 times, start over from A.
