These instructions are for matching a replacement Collar Receiver to your SportDOG Transmitter in 1-dog mode.
Please read all steps before starting.

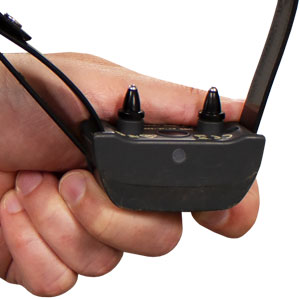

1. Turn the Collar Receiver off.

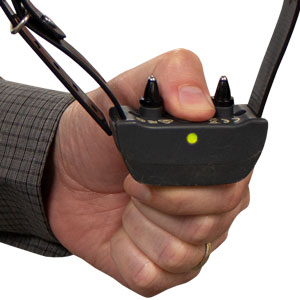

2. Press and hold the On/Off Button. The Receiver Indicator Light will come on and then turn off after 5 seconds.
NOTE: If the Receiver Indicator Light begins flashing, repeat this step.
3. Release the On/Off Button.

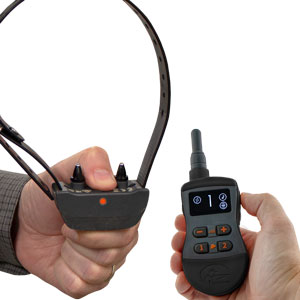

4. Press and hold one of the Side Buttons on the Remote Transmitter until the Receiver Indicator Light flashes 5 times.
5. Once the Receiver Indicator Light has flashed 5 times, the Collar Receiver has been matched and will begin flashing as normal. If the Receiver Indicator Light does not flash, repeat this procedure.
How to Program the Collar for Multi-Dog Operation with the SD-575:1. Program the Remote Transmitter for multi-dog operation:

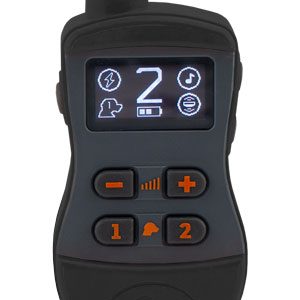

A. Using the Intensity Buttons (-/+), set the display to 2.

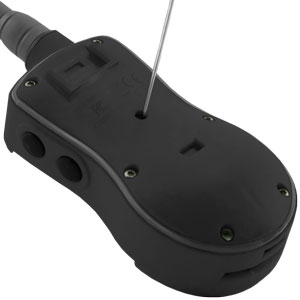

B. Turn the Remote Transmitter over and remove the belt clip (if attached). Using a pen or a paperclip, depress and release the Mode Button.

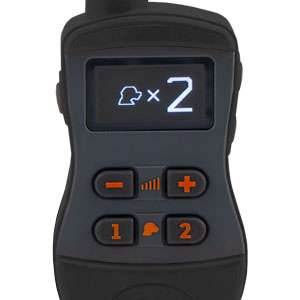

C. Using the Dog Buttons (1/2), select Dog 2. After 5 seconds the icon will blink confirming selection.
2. Program the second Collar Receiver (make sure Dog 2 is selected on the Remote Transmitter):
A. Turn the Collar Receiver off
B. Press and hold the On/Off Button. The Receiver Indicator Light will come on, then turn off after 4-5 seconds. If the On/Off Button is released too early, the Receiver Indicator Light will begin its normal flashing. If this occurs, start over from A
C. After the Receiver Indicator Light has turned off, release the On/Off Button.

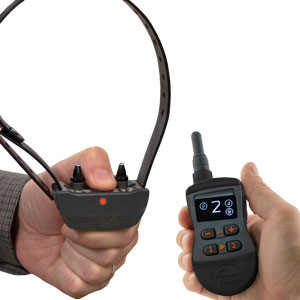

D. Press and hold the Left Side Button on the Remote Transmitter until the Receiver Indicator Light flashes 5 times. If the Receiver Indicator Light does not flash 5 times, start over from A.
