How to Match Replacement SportDOG Add-A-Dog Collars to Your SD-1875 System

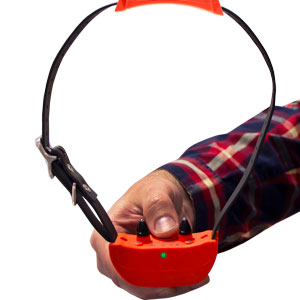

1. Turn the Collar Receiver off.


2. Press and hold the On/Off Button. The Receiver Indicator Light will come on, then turn off in 4-5 seconds. If the On/Off Button is released too early, the Receiver Indicator Light will begin its normal flashing. If this occurs, start over and repeat from step 1.

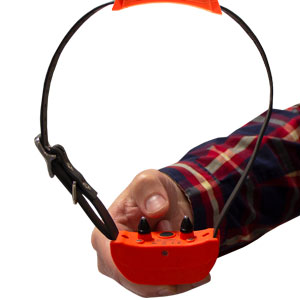

3. After the Receiver Indicator Light has turned off, release the On/Off Button.

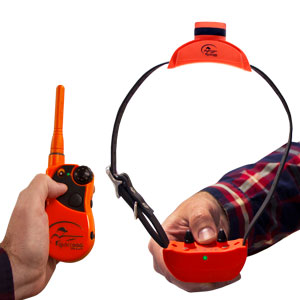

4. Press and hold the Upper Button on the Remote Transmitter until the Receiver Indicator Light flashes 5 times. You may need to hold both units 2-3 feet from each other. If the Receiver Indicator Light does not flash 5 times, start over and repeat from step 1.

---

How to Program the Collar for Two-Dog Operation with the SD-1875

1. Program the Remote Transmitter to modes 1 - 6.

(Consult the SD-1875 Owners Manual for more information on Transmitter Modes.)

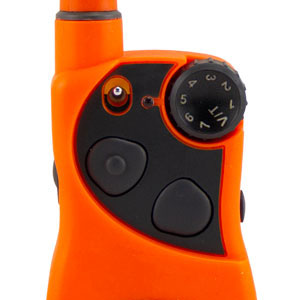

A. Set the Intensity Dial to the number of the desired mode.

B. Turn the Remote Transmitter over.

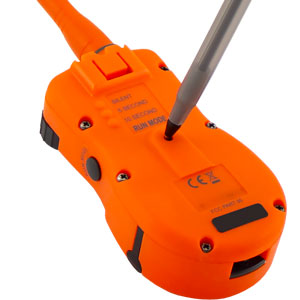

C. With a pen or paperclip, depress and release the mode button.

D. When the mode button is pressed, the Transmitter Indicator Light will be solid in color. When it is released, it will flash the same number of times as the mode selected.

2. Flip the toggle switch to the orange/up position to program the first Collar Receiver.

A. Turn the Collar Receiver off.


B. Press and hold the On/Off Button. The Receiver Indicator Light will come on, then turn off in 4-5 seconds. If the On/Off Button is released too early, the Receiver Indicator Light will begin its normal flashing. If this occurs, start over and repeat from A.


C. After the Receiver Indicator Light has turned off, release the On/Off Button.


D. Press and hold the Upper Button on the Remote Transmitter until the Receiver Indicator Light flashes 5 times.

3. Program the second Collar Receiver the same way using A through D above, but with the toggle switch to the black/down position.

How to Program the Collar for Three-Dog Operation with the SD-1875

1. Program the Remote Transmitter to mode 5.

(Consult the SD-1875 Owners Manual for more information on Transmitter Modes.)

A. Set the Intensity Dial to the number of the desired mode.

B. Turn the Remote Transmitter over.


C. With a pen or paperclip, depress and release the mode button.

D. When the mode button is pressed, the Transmitter Indicator Light will be solid in color. When it is released, it will flash the same number of times as the mode selected.

2. Program the first Collar Receiver:

A. Turn the Collar Receiver off.


B. Press and hold the On/Off Button. The Receiver Indicator Light will come on, then turn off in 4-5 seconds. If the On/Off Button is released too early, the Receiver Indicator Light will begin its normal flashing. If this occurs, start over and repeat from A.


C. After the Receiver Indicator Light has turned off, release the On/Off Button.


D. Press and hold the Upper Button on the Remote Transmitter until the Receiver Indicator Light flashes 5 times. You may need to hold both units 2-3 feet from each other. If the Receiver Indicator Light does not flash 5 times, start over and repeat from A.

3. Program the second Collar Receiver using A through D above, but using the Lower Button in place of the Upper Button.

4. Program the third Collar Receiver using A through D above, but using the Side Button in place of the Lower Button.
