Please read all steps before starting.

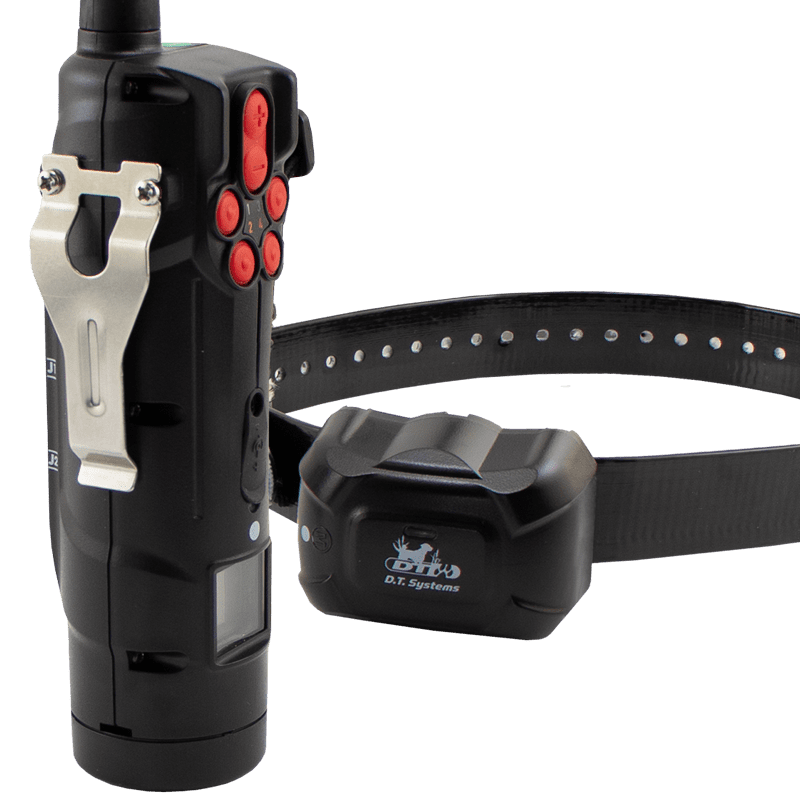

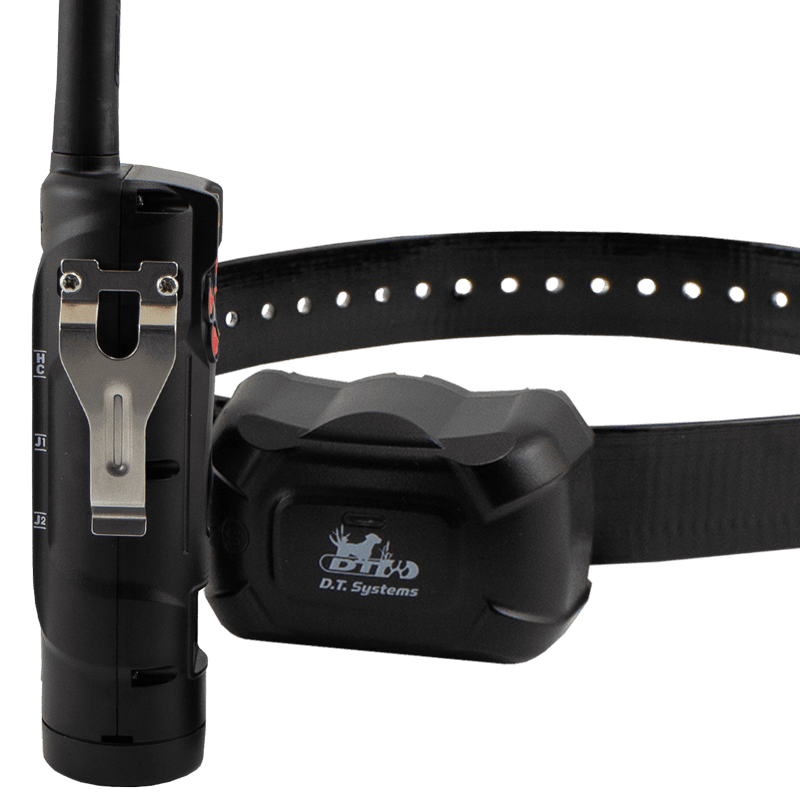

1. Hold the transmitter Magnet Indicator (white dot) directly against the Magnetic Activation Switch on the right side of the collar receiver.

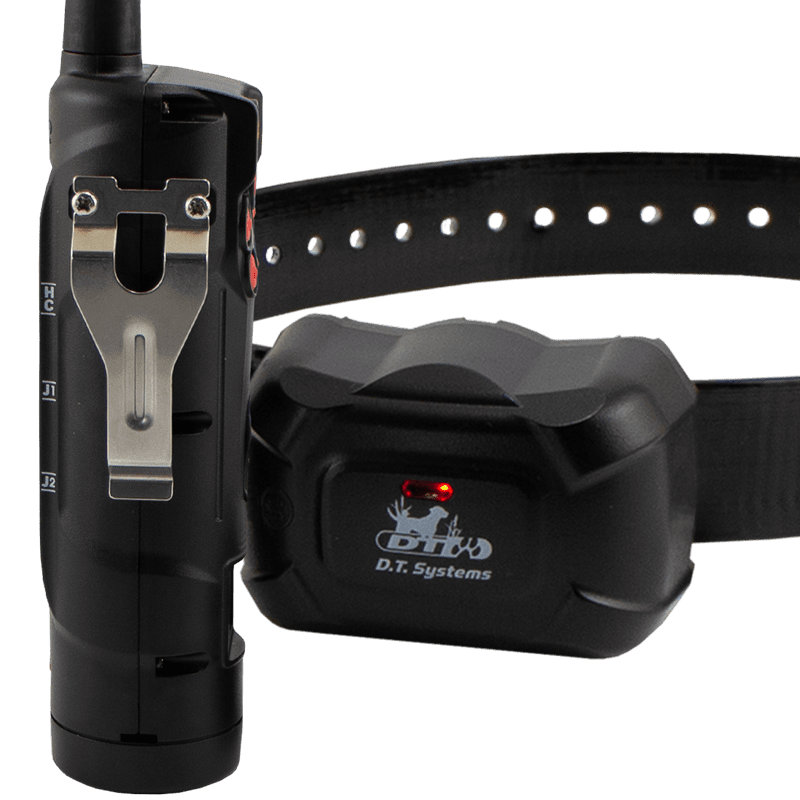

2. The SmartLED on the collar receiver will begin flashing red. Hold the magnet in place until the light stays solid red.
3. Once the SmartLED turns solid red, the collar is now in Code Running "Programming Mode" (the SmartLED will stay lit for approximately 8 seconds while it is in this mode).

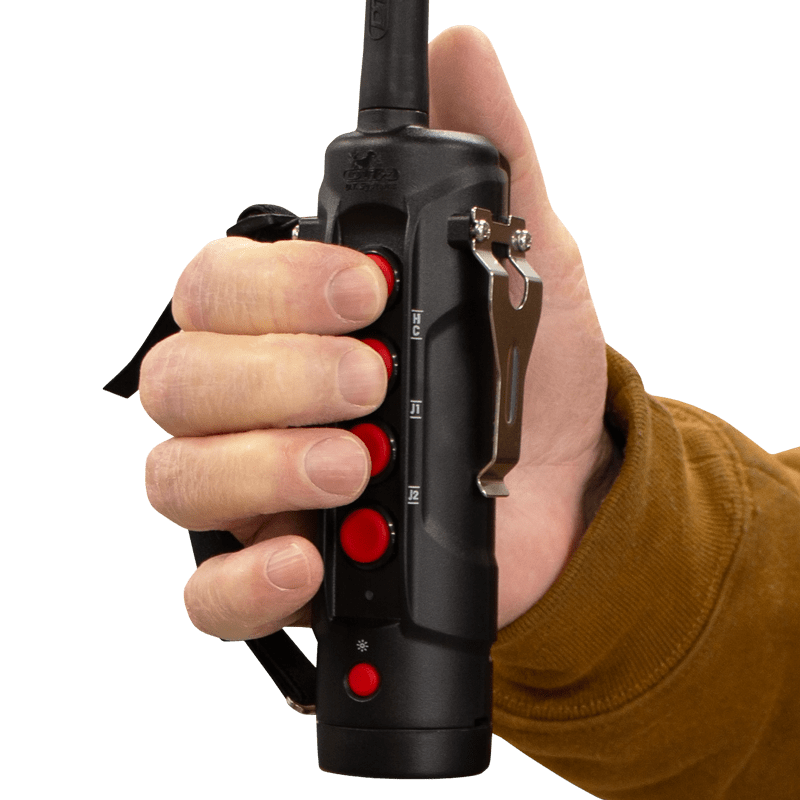

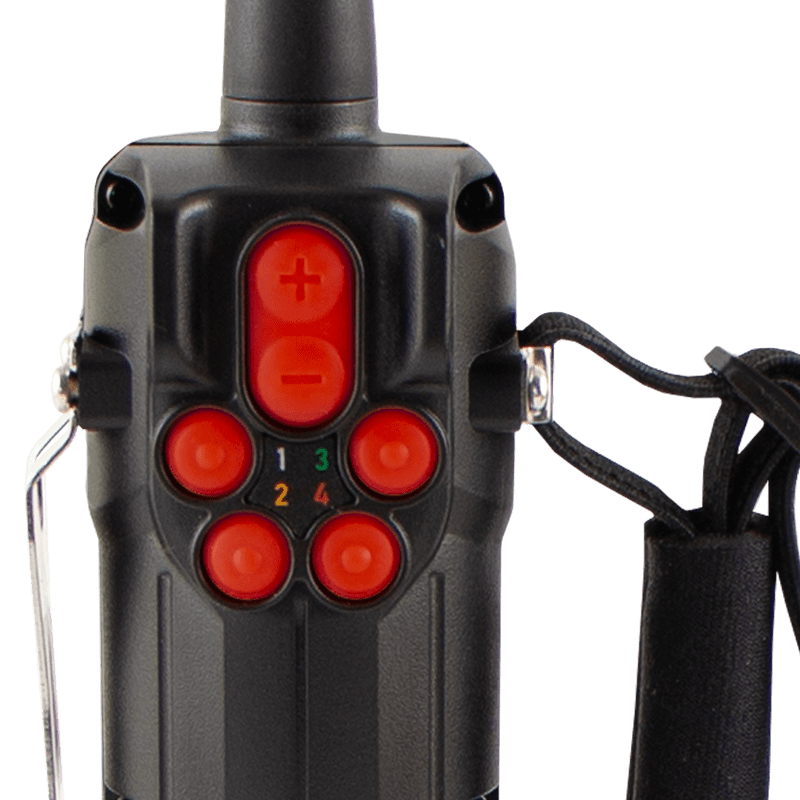

4. Simultaneously press and hold the Dog Number button (1-4) you want to associate with the collar plus the Nick and Continuous buttons.

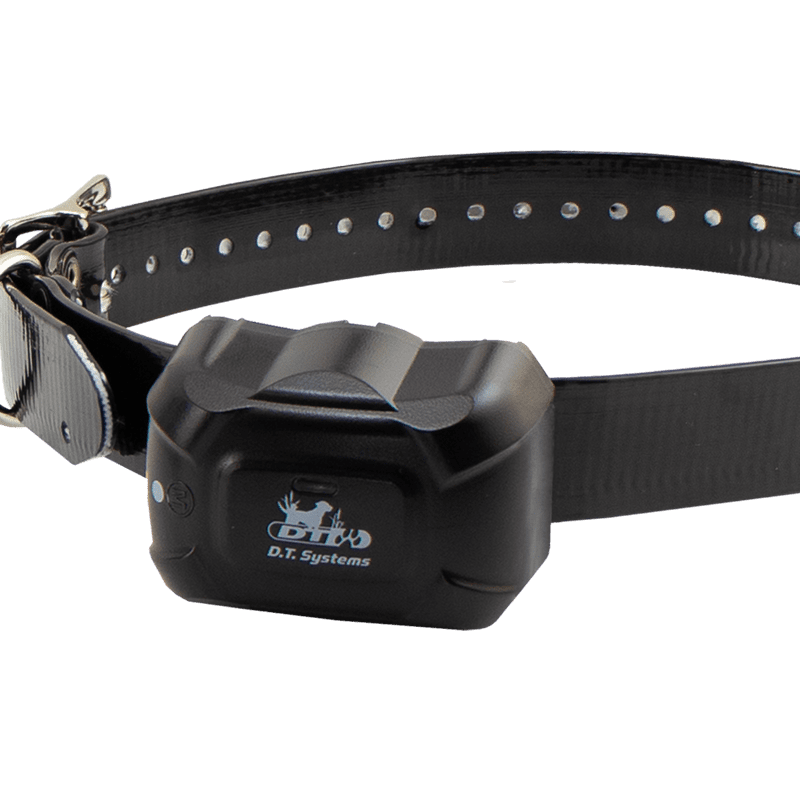

5. The collar LED light will blink and turn OFF indicating it is now programmed to your selected Dog Number button.

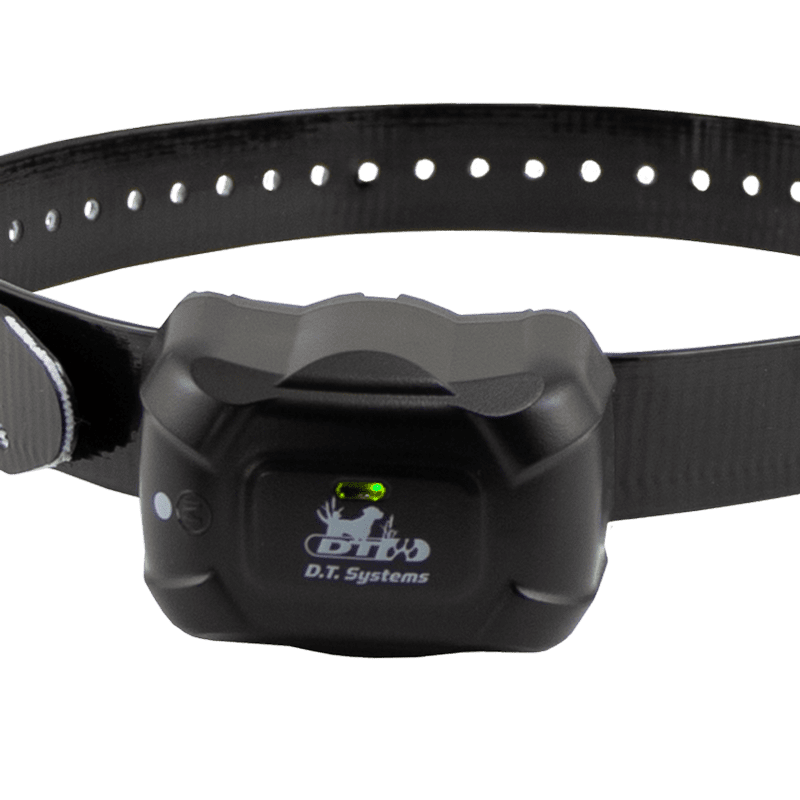

6. Turn the receiver collar back on and test with your chosen Dog Number button on the remote to ensure it is properly programmed.
