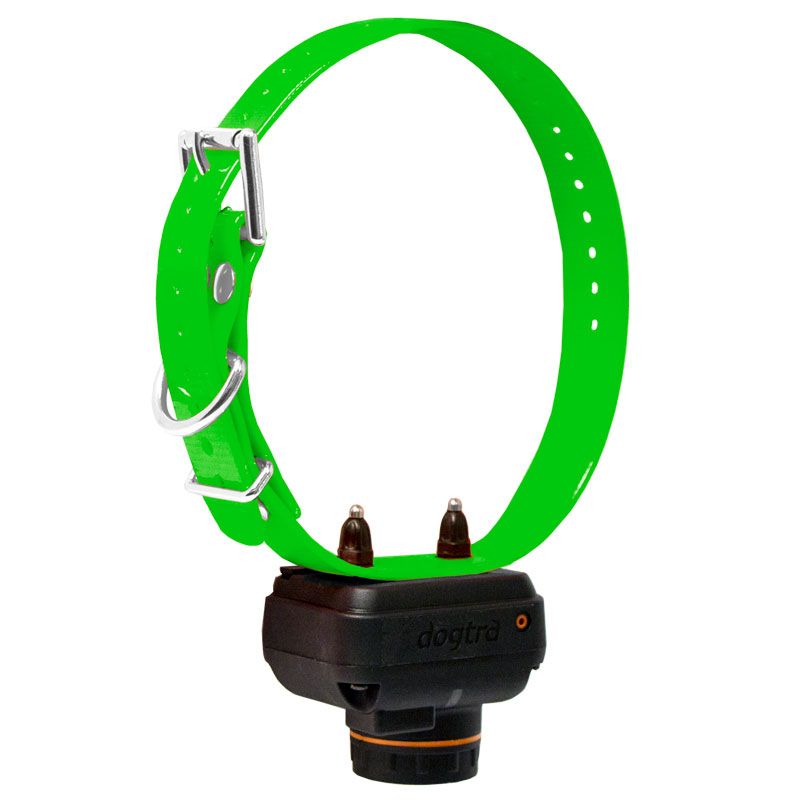

Dogtra 2700 / T&B DUAL Additional / Replacement Collar



$239.99






FREE SHIPPING

Usually ships the next business day.

Need it to ship before Christmas?

To give our staff time to visit family and friends this holiday season, orders placed after 3 pm CT on December 23rd will begin shipping on January 2nd.

Code: 8624
No risk to you. Your 100% Satisfaction is Guaranteed with our 30 Day "No Questions" Money Back Guarantee. Hassle-free returns & exchanges.


Replace a lost or damaged receiver collar or expand your Dogtra T&B DUAL system to work with two dogs. Includes 1" green collar strap. Charger not included.

Compatible with the Dogtra T&B DUAL and Dogtra 2700 T&B.

Dogtra 2700 / T&B DUAL Additional Collar Features:
  • 1 1/2 mile range
  • Fully waterproof
  • 127 levels of nick/constant stim and HPP (High Performance Pager) vibration
  • Single-body receiver / beeper horn for durability
  • 5/8" enhanced contact points
  • Two hour rapid charge batteries
  • Fully waterproof
  • For dogs as small as 35 lbs.


    • How to Match Collars to Your T&B DUAL System

    Before you begin configuring the transmitter, determine how you want to use your system:
    • 1-dog System or 2-dog System

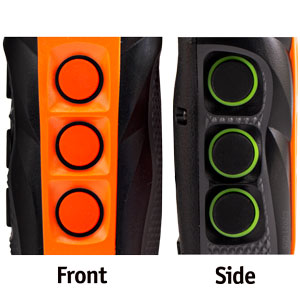

    • Front or Side buttons for Dog 1
    Please read all steps before starting. If you plan on adding a second receiver later, use the 2-dog setup instructions.

    One Dog Transmitter Setup:

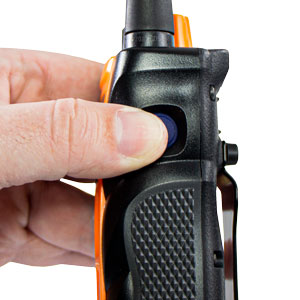

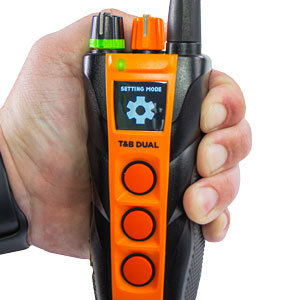

    1. Make sure the transmitter is off. Hold the on/off button on the transmitter until there is a rapid green LED light and the screen shows "Setting Mode."

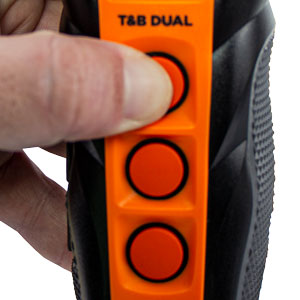

    2. Press the top button to set the transmitter as a 1-dog system.

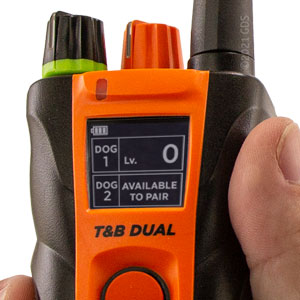

    3. Select which buttons you wish to control the receiver: 1 (Front) or 2 (Side). The screen will then show that Dog 1 has been set up and that the Dog 2 position is "AVAILABLE TO PAIR" if needed.

    If you want to switch buttons, start over by going back to step 1.

    Two Dog Transmitter Setup:


    1. Make sure the transmitter is off. Hold the on/off button on the transmitter until there is a rapid green LED light and the screen shows "Setting Mode"

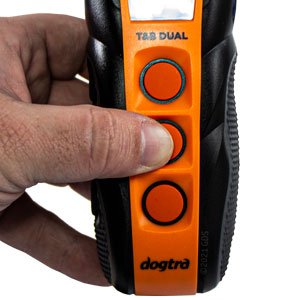

    2. Press the middle button to set the transmitter as a 2-dog system.



    3. Select which buttons you wish to control each receiver: 1 (Dog 1 Front, Dog 2 Side) or 2 (Dog 1 Side, Dog 2 Front)

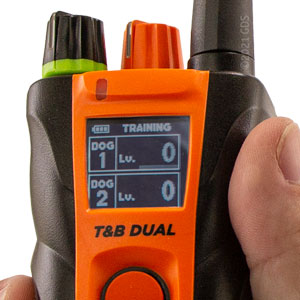

    The screen will show that both ‘Dog 1’ and ‘Dog 2’ have been set up.

    If you want to switch buttons, start over by going back to step 1.

    Collar Setup:

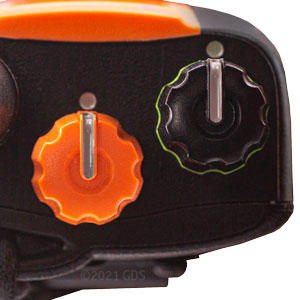

    1. Turn the transmitter on. Set both rheostat dials to 0.

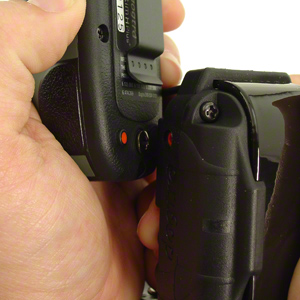

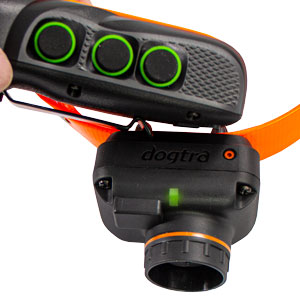

    2. With the receiver turned off, place the red dot on the transmitter to the red dot on the receiver. Hold the two red dots together until the green LED blinks rapidly on the receiver. When the receiver light blinks rapidly, separate the two devices.

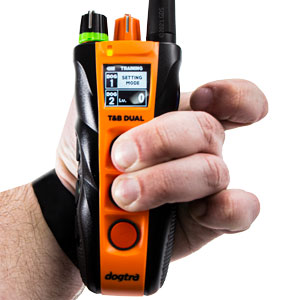

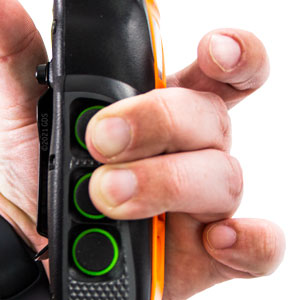

    3. For Dog 1, simultaneously press the top two buttons on the transmitter you previously configured for Dog 1. When pairing is complete, the LED light on the receiver flashes every 4 seconds.

    If you are configuring a 2-dog system, for Dog 2 repeat the entire Collar Setup process and press the top two buttons on the transmitter you previously configured for Dog 2.

    NOTE: Do not code both receivers to the same side.



    How to Match Collars to Your 2700 T&B Expandable System

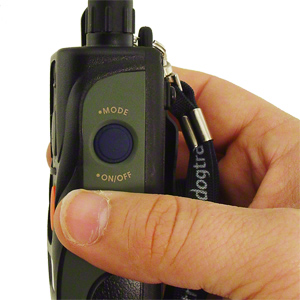

    1. Turn the transmitter on by pushing the ON/OFF Button located on the right side (not all transmitters have an On/Off button).

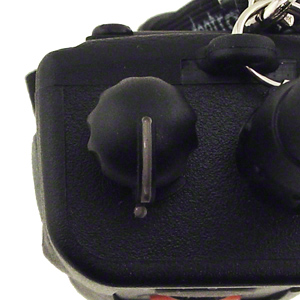

    2. Set the Intensity Selection Dial to "0".

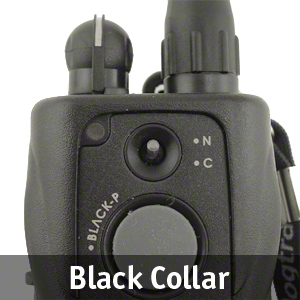

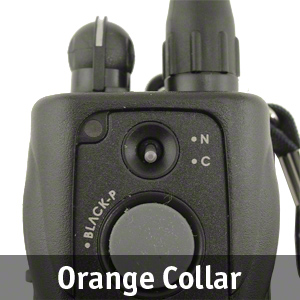

    3. Set the Toggle in the UP position to synch the BLACK (Dog 1) collar (GREEN on T&B systems), or DOWN to synch the ORANGE (Dog 2) collar.



    4. Place the red dot on the back of the transmitter to the red dot on the collar/receiver. Hold the two red dots together for about 5 seconds or more. Release them when the green LED blinks rapidly on the collar/receiver.

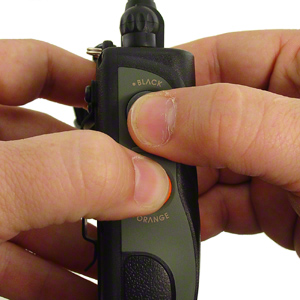

    5. Within 5 seconds after taking the two red dots apart, hold down the two buttons simultaneously on the side of the transmitter for 3 seconds or until the rapid green blink resumes to a slower-paced green blink. The LED indicator light will start to blink once every 4 seconds after staying lit green for about a second. Now the coding is completed.
